Stainless Steel C Groove Steel
Classification :
PRODUCT DETAILS
Product Description
The stainless steel channel is a long strip steel whose cross-sectional shape is a groove shape. Same as I-beam, stainless steel channel steel is also divided into two kinds of ordinary channel steel and light channel steel. The main purpose of hot-rolled stainless steel ordinary channel steel is: ordinary channel steel is mainly used for building structure, vehicle manufacturing and other industrial structures, and is often used in conjunction with I-beam.
Hot-rolled stainless steel light channel steel (YB164-63) Hot-rolled light channel steel is a kind of steel with wide legs and thin walls, which has better economic effect than ordinary hot-rolled channel steel. Main uses: construction and steel frame structure, etc.
Product Parameters
|
Material |
A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540 |
|
Scope of production |
50*37*4.5-400*104*14.5,75*40*3.8*7-152*76*6.4*9, 140*60*7*10-200*75*8.5*11.5 |
|
Length |
6m, 9m, 12mor according to customer requirements |
|
Technology |
Hot rolled, welded |
|
Standard |
ASTM,AISI,JIS,GB, DIN,EN |
|
Surface |
Galvanized, painted;or according to your requirements |
|
supply capacity |
2000tons/Day |
|
Business Type |
Manufacturer |
|
Certificate |
ISO, SGS,BV |
|
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
|
loading port |
Any port in China |
|
Packaging |
Standard export packing or as your request |
|
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |
|

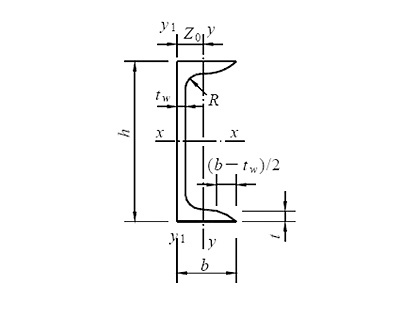

symbol: Same as ordinary I-beam But Wy is the corresponding wing tip |
|
length: Model 5~8, length 5~12m; Model 10~18, length 5~19m; Model 20~20, length 6~19m. |
||||||||||||||
|
|
size（mm） |
Sectional area (cm2) |
Theory Weight (kg/m) |
x-x axis |
y-y axis |
y-y1 axis |
Z0 |
|||||||||
|
h |
b |
tw |
t |
R |
Ix |
Wx |
ix |
Iy |
Wy |
Iy |
Iy1 |
|||||
|
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm) |
|||||||||
|
5 |
50 |
37 |
4.5 |
7 |
7 |
6.92 |
5.44 |
26 |
10.4 |
1.94 |
8.3 |
3.5 |
1.1 |
20.9 |
1.35 |
|
|
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
8.45 |
6.63 |
51 |
16.3 |
2.46 |
11.9 |
4.6 |
1.19 |
28.3 |
1.39 |
|
|
8 |
80 |
43 |
5 |
8 |
8 |
10.24 |
8.04 |
101 |
25.3 |
3.14 |
16.6 |
5.8 |
1.27 |
37.4 |
1.42 |
|
|
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
12.74 |
10 |
198 |
39.7 |
3.94 |
25.6 |
7.8 |
1.42 |
54.9 |
1.52 |
|
|
12.6 |
126 |
53 |
5.5 |
9 |
9 |
15.69 |
12.31 |
389 |
61.7 |
4.98 |
38 |
10.3 |
1.56 |
77.8 |
1.59 |
|
|
14 |
a |
140 |
58 |
6 |
9.5 |
9.5 |
18.51 |
14.53 |
564 |
80.5 |
5.52 |
53.2 |
13 |
1.7 |
107.2 |
1.71 |
|
b |
60 |
8 |
9.5 |
9.5 |
21.31 |
16.73 |
609 |
87.1 |
5.35 |
61.2 |
14.1 |
1.69 |
120.6 |
1.67 |
||
|
16 |
a |
160 |
63 |
6.5 |
10 |
10 |
21.95 |
17.23 |
866 |
108.3 |
6.28 |
73.4 |
16.3 |
1.83 |
144.1 |
1.79 |
|
b |
65 |
8.5 |
10 |
10 |
25.15 |
19.75 |
935 |
116.8 |
6.1 |
83.4 |
17.6 |
1.82 |
160.8 |
1.75 |
||
|
18 |
a |
180 |
68 |
7 |
10.5 |
10.5 |
25.69 |
20.17 |
1273 |
141.4 |
7.04 |
98.6 |
20 |
1.96 |
189.7 |
1.88 |
|
b |
70 |
9 |
10.5 |
10.5 |
29.29 |
22.99 |
1370 |
152.2 |
6.84 |
111 |
21.5 |
1.95 |
210.1 |
1.84 |
||
|
20 |
a |
200 |
73 |
7 |
11 |
11 |
28.83 |
22.63 |
1780 |
178 |
7.86 |
128 |
24.2 |
2.11 |
244 |
2.01 |
|
b |
75 |
9 |
11 |
11 |
32.83 |
25.77 |
1914 |
191.4 |
7.64 |
143.6 |
25.9 |
2.09 |
268.4 |
1.95 |
||
|
|
a |
220 |
77 |
7 |
11.5 |
11.5 |
31.84 |
24.99 |
2394 |
217.6 |
8.67 |
157.8 |
28.2 |
2.23 |
298.2 |
2.1 |
|
b |
79 |
9 |
11.5 |
11.5 |
36.24 |
28.45 |
2571 |
233.8 |
8.42 |
176.5 |
30.1 |
2.21 |
326.3 |
2.03 |
||
|
25
|
a |
250 |
78 |
7 |
12 |
12 |
34.91 |
27.4 |
3359 |
268.7 |
9.81 |
175.9 |
30.7 |
2.24 |
324.8 |
2.07 |
|
b |
80 |
9 |
12 |
12 |
39.91 |
31.33 |
3619 |
289.6 |
9.52 |
196.4 |
32.7 |
2.22 |
355.1 |
1.99 |
||
|
c |
82 |
11 |
12 |
12 |
44.91 |
35.25 |
3880 |
310.4 |
9.3 |
215.9 |
34.6 |
2.19 |
388.6 |
1.96 |
||
|
28
|
a |
280 |
82 |
7.5 |
12.5 |
12.5 |
40.02 |
31.42 |
4753 |
339.5 |
10.9 |
217.9 |
35.7 |
2.33 |
393.3 |
2.09 |
|
b |
84 |
9.5 |
12.5 |
12.5 |
45.62 |
35.81 |
5118 |
365.6 |
10.59 |
241.5 |
37.9 |
2.3 |
428.5 |
2.02 |
||
|
c |
86 |
11.5 |
12.5 |
12.5 |
51.22 |
40.21 |
5484 |
391.7 |
10.35 |
264.1 |
40 |
2.27 |
467.3 |
1.99 |
||
|
32 |
a |
320 |
88 |
8 |
14 |
14 |
48.5 |
38.07 |
7511 |
469.4 |
12.44 |
304.7 |
46.4 |
2.51 |
547.5 |
2.24 |
|
b |
90 |
10 |
14 |
14 |
54.9 |
43.1 |
8057 |
503.5 |
12.11 |
335.6 |
49.1 |
2.47 |
592.9 |
2.16 |
||
|
c |
92 |
12 |
14 |
14 |
61.3 |
48.12 |
8603 |
537.7 |
11.85 |
365 |
51.6 |
2.44 |
642.7 |
2.13 |
||
|
36 |
a |
360 |
96 |
9 |
16 |
16 |
60.89 |
47.8 |
11874 |
659.7 |
13.96 |
455 |
63.6 |
2.73 |
818.5 |
2.44 |
|
b |
98 |
11 |
16 |
16 |
68.09 |
53.45 |
12652 |
702.9 |
13.63 |
496.7 |
66.9 |
2.7 |
880.5 |
2.37 |
||
|
c |
100 |
13 |
16 |
16 |
75.29 |
59.1 |
13429 |
746.1 |
13.36 |
536.6 |
70 |
2.67 |
948 |
2.34 |
||
|
40 |
a |
400 |
100 |
10.5 |
18 |
18 |
75.04 |
58.91 |
17578 |
878.9 |
15.3 |
592 |
78.8 |
2.81 |
1057.9 |
2.49 |
|
b |
102 |
12.5 |
18 |
18 |
83.04 |
65.19 |
18644 |
932.2 |
14.98 |
640.6 |
82.6 |
2.78 |
1135.8 |
2.44 |
||
|
c |
104 |
14.5 |
18 |
18 |
91.04 |
71.47 |
19711 |
985.6 |
14.71 |
687.8 |
86.2 |
2.75 |
1220.3 |
2.42 |
||
Factory Appearance
Xinbaolong has scale advantages, resource advantages, integration advantages, technology research and development advantages, capital operation advantages, and has a complete pre-sales, sales and after-sales service system. Positioned to produce and develop high-end wide and thick plates, we continue to innovate and seek transformation, and are willing to provide global customers with other hot-rolled plates, medium-thick plates, wire rods, cold-rolled plates, galvanized plates, stainless steel and other steel products.
Packing and shipping
We can provide
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
Application Areas
Steel has the advantages of high strength, wear resistance, corrosion resistance, etc., so it is widely used in various fields. With the advancement of science and technology and the continuous improvement of steel, it is expected that the application fields of steel will continue to expand.
FAQ
Does the product have quality inspection before loading?
A: Of course, all our products have undergone strict quality inspection before packing, and unqualified products will be destroyed.
What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
How long does your delivery time take?
A:Generally, our delivery time is within 7-45 days, if there is a great demand or special circumstances, it may be delayed.
Can you give warranty of your products?
A:Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
What are the shipping ports?
A:You can choose other ports according to your needs.
How about the delivery time?
A:Within 15-35 days after we confirm you requirement.
